Naslovna » Auto akustika » Pojačala » DLS Performance CAD 15

DLS Performance CAD 15

DLS Performance CAD 15
DLS Performance CAD 15 DLS Performance CAD 15 DLS Performance CAD 15 DLS Performance CAD 15 DLS Performance CAD 15 DLS Performance CAD 15
4737.00 Brand New
Proizvođač: DLS
Model: cad-15
Cijena: 4.737,00 Kn
VPC: 3.789,60 Kn
Količina:
   - ILI -

1x550W@4Ohm, 1x900W@2Ohm, 1x1600W@1Ohm, digital monoblock

CAD15 je vrlo snažno pojačalo nominalne snage 1600 Watt-a na opterećenju jednog ohm-a. CAD15 je digitalno pojačalo D klase.



Karakteristike:

  • Amplifier class D;
  • High level input with auto start;

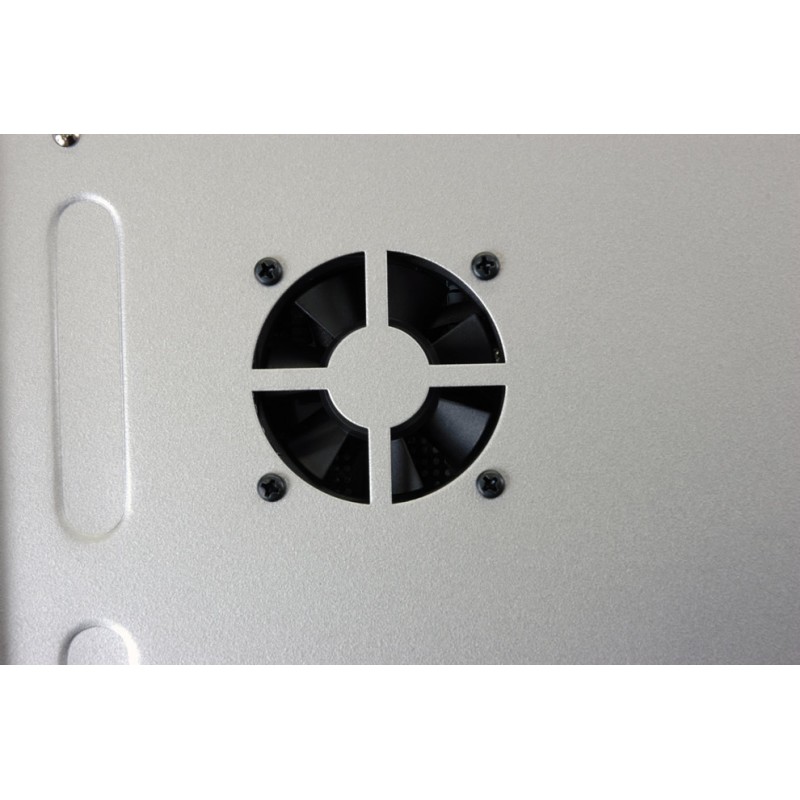

  • Integrated fan;
  • Grand bass filter 0 +/- 18 dB @  45 Hz

Preuzimanje Priručnika

Man_CAD11_15_eng_2.pdf (0.46 MB)

Car Audio Amplifier
Subsonic filter 15 - 50Hz (24dB/oct)
Low-pass filter 15 - 150Hz (24dB/oct)

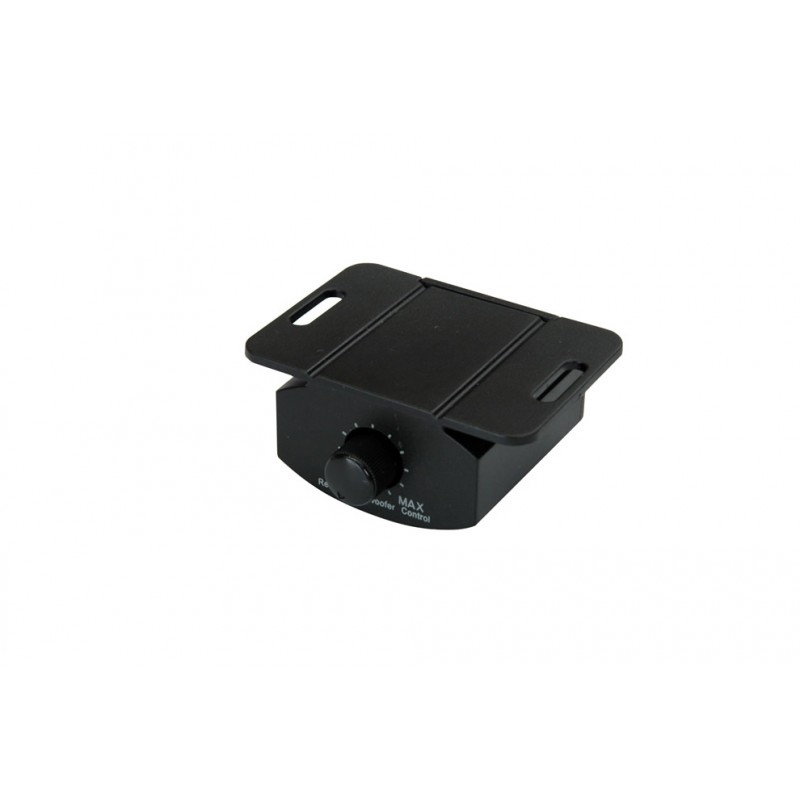

Remote control Yes

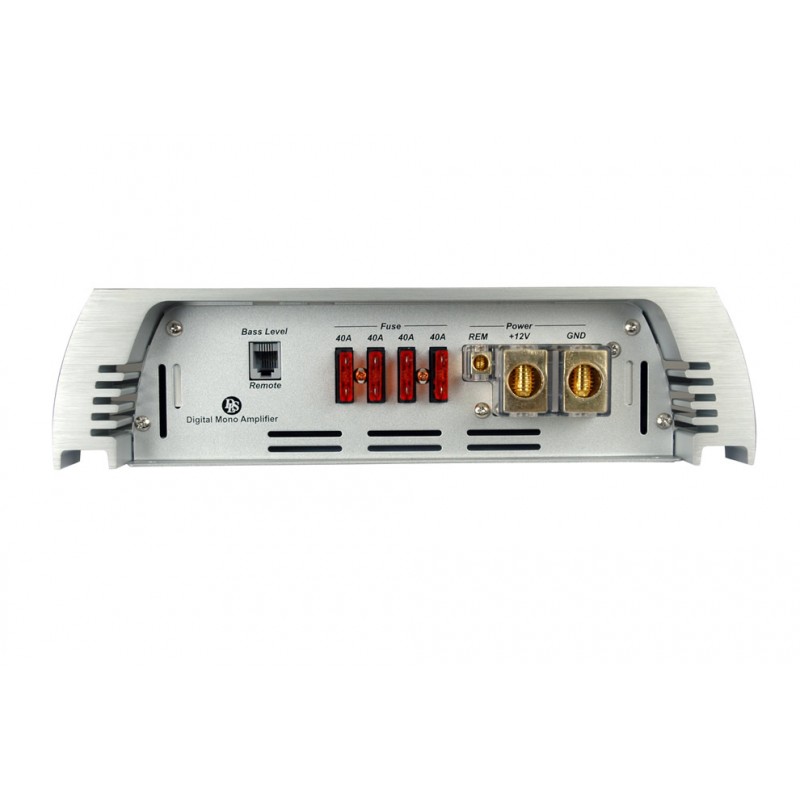

Fuse 4 x 40A
Input impedance >10 k Ohms
Damping factor @ 4 Ohms >100
Signal/Noise ratio (RMS) >100dB (A)
Frequency response 15Hz - 160Hz
Input sensitivity 0.15 - 5V
Phase control 0-180 degrees pitch
Maximum cross section of speaker wires 6 mm2 (10 AWG)
Maximum cross section of power cables 50 mm2 (0 AWG)
Protections Short circuit; Thermal overload
Nominal power at 14.4V continuously into 4 Ohms THD + N<=1% 1 x 550W
Nominal power at 14.4V continuously into 2 Ohms THD + N<= 1% 1 x 900W
Nominal power at 14.4V continuously into 1 Ohm THD + N<= 1% 1 x 1600W
Car Audio General
Power Consumption 160 A
Power Consumption (idle) 2 A
Dimenzije (Š x V x D) 473mm x 70mm x 268mm
Težina 6.4 kg
